| 品牌 | 焦作研发泵业 | 型号 | 150TQZ-A35(J) | 用途 | 杂质泵 |
| 驱动方式 | 电动 | 泵轴位置 | 卧式 | 叶轮吸入方式 | 单吸式 |
| 叶轮结构 | 敞开式叶轮 | 性能 | 耐磨 | 叶轮数目 | 多级 |
| 流量 | 6~364（m3/h） | 扬程 | 2.4~58.3（m） | 转速 | 980（rpm） |
| 轴功率 | 18（kW） | 吸入口径 | 40（mm） | 排出口径 | 200（mm） |
产品概述
TQZ潜水渣浆泵是我公司自行设计、研发的新泵型，该泵是由电机与泵两部分组成，二者通过油隔离室及机械密封组件隔开，属电机一体化产品，电机与泵合用同一轴（转子）整个水泵长度短，结构紧凑。配备多种保护装置，使得泵运行安全可靠。
采用Y系列国际电机，F级绝缘，运行安全可靠。
采用双道串联密封，选用新型合金材质，具有密封可靠，耐磨，寿命长等特点。
过流部件采用高铬渣浆泵，材质耐磨，性能好，过流性能优异，是国内同类型泵寿命的2-10倍。
技术参数
| TQZ系列渣浆泵直联传动清水性能表1 | |||||||
| 型号 | 转速nr/min | 清水性能 | 配套电机 | ||||
| 流量 Qm3/h | 扬程Hm | 轴功Pakw | 最高效率η% | 型号 | 功率/电压Kw/v | ||
| 150TQZ-A35(J) | 980 | 198 | 17.9 | 15.3 | 63.1 | Y225M-6 V1 | 30/380 |
| 332 | 13.2 | 17.5 | 68.1 | ||||
| 364 | 12.1 | 18.0 | 66.8 | ||||
| 730 | 147 | 10.0 | 6.3 | 63.1 | Y180L-8 V1 | 11/380 | |
| 247 | 7.3 | 7.2 | 68.1 | ||||
| 271 | 6.7 | 7.4 | 66.8 | ||||
| 590 | 119 | 6.5 | 3.3 | 63.1 | Y160M-6 B3 | 7.5/380 | |
| 200 | 4.8 | 3.8 | 68.1 | ||||
| 219 | 4.4 | 3.9 | 66.8 | ||||
| 100TQZ-A34(J) | 1480 | 157 | 36.8 | 26.1 | 60.2 | Y255M-4 V1 | 45/380 |
| 214 | 32.6 | 29.2 | 65.1 | ||||
| 293 | 24.4 | 33.5 | 58.2 | ||||
| 970 | 103 | 15.8 | 7.4 | 60.2 | Y180L-6 V1 | 15/380 | |
| 140 | 14.0 | 8.2 | 65.1 | ||||
| 192 | 10.5 | 9.4 | 58.2 | ||||
| 80TQZ-A36(J) | 1480 | 105 | 45.5 | 25.0 | 52.1 | Y255M-4 V1 | 45/380 |
| 144 | 41.4 | 27.9 | 58.2 | ||||
| 201 | 32.5 | 32.8 | 54.2 | ||||
| 970 | 69 | 19.5 | 7.0 | 52.1 | Y180L-6 V1 | 15/380 | |
| 94 | 17.8 | 7.8 | 58.2 | ||||
| 132 | 14.0 | 9.3 | 54.2 | ||||
| 65TQZ-A30(J) | 1470 | 38 | 34.7 | 8.2 | 43.7 | Y180L-4 V1 | 18.5/380 |
| 58 | 31.9 | 9.7 | 51.9 | ||||
| 98 | 26.0 | 13.4 | 51.7 | ||||
| 960 | 25 | 14.8 | 2.3 | 43.7 | Y132M2-6 B5 | 5.5/380 | |
| 38 | 13.6 | 2.7 | 51.9 | ||||
| 64 | 11.1 | 3.7 | 51.7 | ||||
| 50TQZ-B40(J) | 1470 | 31 | 58.3 | 16.5 | 29.9 | Y200L-4 V1 | 30/380 |
| 47 | 51.0 | 19.1 | 34.1 | ||||
| 65 | 37.9 | 22.1 | 30.3 | ||||
| 970 | 21 | 25.4 | 4.9 | 29.9 | Y160L-6-B5 | 11/380 | |
| 31 | 22.2 | 5.5 | 34.1 | ||||
| 43 | 16.5 | 6.4 | 30.3 | ||||
| 50TQZ-A35(J) | 1470 | 39 | 47.1 | 11.9 | 42.1 | Y180L-4 V1 | 22/380 |
| 64 | 40.9 | 14.8 | 48.1 | ||||
| 86 | 32.2 | 17.5 | 43.1 | ||||
| 970 | 26 | 20.5 | 3.4 | 42.1 | Y160M-6 B5 | 7.5/380 | |
| 42 | 17.8 | 4.2 | 48.1 | ||||
| 57 | 14.0 | 5.0 | 43.1 | ||||
| 50TQZ-A20(J) | 1440 | 17.1 | 10.7 | 1.4 | 34.9 | Y112M-4 B5 | 4/380 |
| 24.7 | 9.2 | 1.6 | 38.6 | ||||
| 38.0 | 6.0 | 2.0 | 31.2 | ||||
| 910 | 10.8 | 4.3 | 0.4 | 34.9 | Y90L-6 B5 | 1.1/380 | |
| 15.6 | 3.7 | 0.4 | 38.6 | ||||
| 24.0 | 2.4 | 0.5 | 31.2 | ||||
| TQZ系列渣浆泵直联传动清水性能表2 |
| 型号 | 转速nr/min | 清水性能 | 配套电机 | ||||
| 流量 Qm3/h | 扬程HM | 轴功Pakw | 最高效率η% | 型号 | 功率/电压Kw/v | ||
| 50TQZ-A20(J) | 2950 | 37 | 46.2 | 16.9 | 27.6 | Y200L1-2 V1 | 30/380 |
| 56 | 38.3 | 17.3 | 33.8 | ||||
| 70 | 24.3 | 18.0 | 25.8 | ||||
| 1440 | 18 | 11.0 | 2.0 | 27.6 | Y112M-4 B5 | 4/380 | |
| 28 | 9.1 | 2.1 | 33.8 | ||||
| 34 | 5.8 | 2.1 | 25.8 | ||||
| 40TQZ-A35(J) | 1470 | 19.7 | 48.0 | 8.8 | 29.2 | Y180M-4 B5 | 18.5/380 |
| 39.4 | 41.7 | 11.6 | 38.7 | ||||
| 47.6 | 35.8 | 12.6 | 36.7 | ||||
| 960 | 12.9 | 20.5 | 2.5 | 29.2 | Y132M2-6 B5 | 5.5/380 | |
| 25.7 | 17.8 | 3.2 | 38.7 | ||||
| 31.1 | 15.3 | 3.5 | 36.7 | ||||
| 40TQZ-B25(J) | 1440 | 10.1 | 21.5 | 2.3 | 26.1 | Y112M-4 B5 | 5.5/380 |
| 18.4 | 19.0 | 2.6 | 36.6 | ||||
| 22.9 | 16.8 | 2.8 | 37.6 | ||||
| 940 | 6.6 | 9.2 | 0.6 | 26.1 | Y100L-6 B5 | 1.5/380 | |
| 12.0 | 8.1 | 0.7 | 36.6 | ||||
| 14.9 | 7.2 | 0.8 | 37.6 | ||||
| 40TQZ-A21(J) | 1440 | 9.5 | 17.0 | 1.6 | 27.9 | Y112M-4 V1 | 4.0/380 |
| 20.3 | 15.3 | 2.0 | 42.4 | ||||
| 25.9 | 14.1 | 2.2 | 44.6 | ||||
| 910 | 6.0 | 6.8 | 0.4 | 27.9 | Y90L-6 V1 | 1.1/380 | |

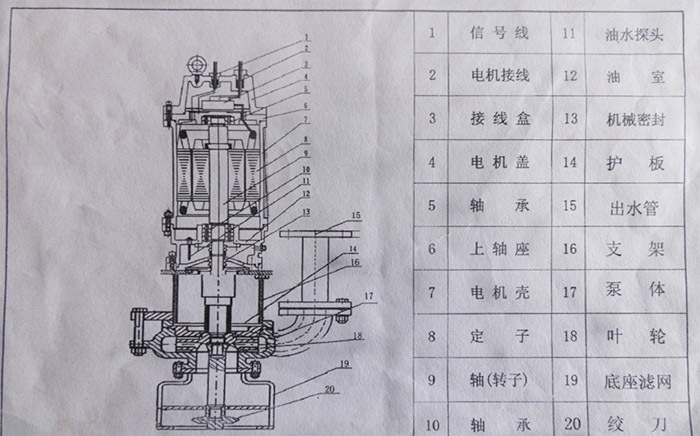

结构图
