| 品牌 | WILO/威乐 | 型号 | MVI203-1/16/E/3-380-50-2 | 材质 | 不锈钢 |
| 性能 | 增压 | 用途 | 增压泵 | 泵轴位置 | 边立式 |
| 叶轮结构 | 封闭式叶轮 | 叶轮吸入方式 | 单吸式 | 流量 | 3（m3/h） |
| 叶轮数目 | 3 | 扬程 | 30（m） | 吸入口径 | 25（mm） |
| 排出口径 | 25（mm） | 规格 | MVI203-1/16/E/3-380-50-2 |

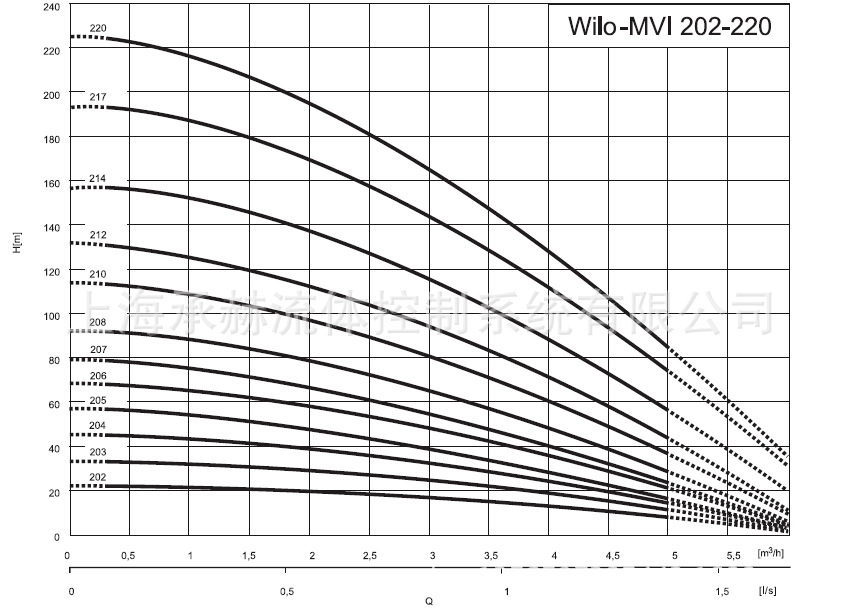

流量扬程表
产品型号：
| MVI202-1/16/E/3-380-50-2 |
| MVI203-1/16/E/3-380-50-2 |
| MVI204-1/16/E/3-380-50-2 |
| MVI205-1/16/E/3-380-50-2 |
| MVI206-1/16/E/3-380-50-2 |
| MVI207-1/16/E/3-380-50-2 |
| MVI208-1/16/E/3-380-50-2 |
| MVI210-1/16/E/3-380-50-2 |
| MVI212-1/16/E/3-380-50-2 |
| MVI202-1/25/E/3-380-50-2 |
| MVI203-1/25/E/3-380-50-2 |
| MVI204-1/25/E/3-380-50-2 |
| MVI205-1/25/E/3-380-50-2 |
| MVI206-1/25/E/3-380-50-2 |
| MVI207-1/25/E/3-380-50-2 |
| MVI208-1/25/E/3-380-50-2 |
| MVI210-1/25/E/3-380-50-2 |
| MVI212-1/25/E/3-380-50-2 |
| MVI217-1/25/E/3-380-50-2 |
| MVI220-1/25/E/3-380-50-2 |
eature/特征:
Stainless steel materials/不锈钢材质
High pressure by multi-stage impeller/多级叶轮，高扬程
Easy maintenance by bidirectional mechanical seal/双向机械密封，易维护
CQC certification/获得中国节能认证证书
Application/应用:
Water supply and pressure boosting/供水和增压
Hot water circulation and heating system/热水循环和采暖系统
Air-conditioning systems/空调系统
Industrial circulation systems/工业循环系统
Washing and sprinkling systems/清洗及喷洒灌溉系统
For various machinery/各种机器配套
